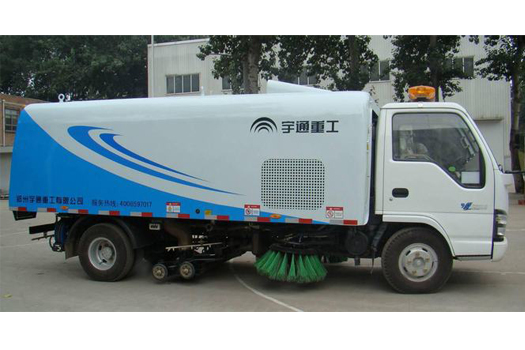

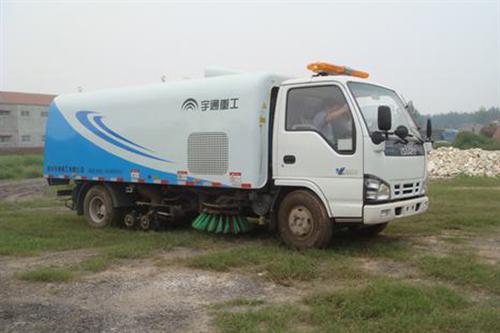

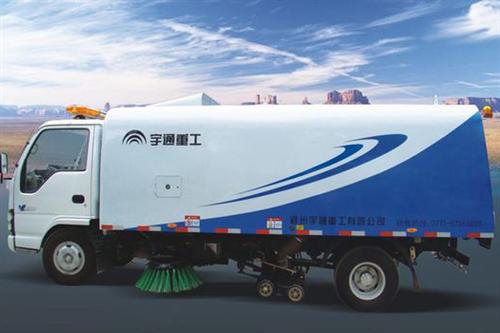

YTZ5070TXS70E/F Street Sweeper
The street sweeper with
high pressure water system is mainly used for cleaning pavement and sweeping
pavement, which can be used as the cleaning truck and the sweeper truck
simultaneously.
Performance Features
1. The street sweeper with high pressure water system is mainly used for cleaning pavement and sweeping pavement, which can be used as the cleaning truck and the sweeper truck simultaneously. During the cleaning operation, it is operated in high-pressure, low flow mode, which is characterized by dynamic decontamination, highly efficient and water-saving. The street sweeper is particularly suitable for the cleaning, sweeping and sanitation work of left & right pavement and curbs and kerb façade in the urban roads, as well as recycling the cleaning sewage.
2. The sweet sweeper adopts centralized control panel, LCD monitor system and GPS position services (optional), etc.
3. Owing to the application of ISUZU auxiliary engine, the diesel burning is more adequate, which truly embody the design concept of fuel-efficient and environmentally friendly through the characteristics of fuel efficient and superior emissions.
4. The pumping and suction system has been optimized by the academician workstation, thereby enabling reasonable system matching and the industry's lowest power consumption.
5. The sweet sweeper widely adopts the finite element analysis software in design, which not only allows the components to meet the requirements of stiffness and strength, but also greatly reduces the dead weight.
6. High standard quality control: our street sweeper is designed according to the national military standard GJB9001A-2001 quality system certification; and the ISO9001 quality system; as well as the ISO14001 environmental management system.
Parameter
|
Work performance
|
High-pressure cleaning
|
Cleaning width
|
m
|
3.1
|
|
Washing speed
|
km/h
|
3~15
|
|
Water pressure for washing
|
mpa
|
10
|
|
Water volume for washing
|
L/min
|
80
|
|
Sweeping width for kerb
|
mm
|
150
|
|
Maximum suction granularity
|
mm
|
110
|
|
Sweeping work
|
Sweeping width
|
m
|
3
|
|
Operating speed
|
km/h
|
3~20
|
|
Maximum sweeping capacity
|
㎡/h
|
60000
|
|
Discharge angle
|
°
|
≥45
|
|
Maximum volume of clean water tank
|
L
|
4500
|
|
Maximum volume of sewage tank
|
L
|
2800
|
|
Driving performance
|
Maximum speed (full load)
|
km/h
|
100
|
|
Maximum climbing angle
|
%
|
30
|
|
Brake distance (full load, 30 km/h)
|
m
|
≤10
|
|
Minimum Turning Diameter
|
m
|
13.6
|
|
Fuel consumption
|
Fuel consumption for driving
|
L/10000㎡
|
12.8
|
|
Fuel consumption for work
(Average sweeping speed 8km/h)
|
L/h
|
6.5
|
|
L/10000㎡
|
2.4
|
|
Mass parameters
|
Complete Vehicle Kerb Mass
|
kg
|
5670
|
|
Max. gross mass
|
kg
|
7300
|
|
Structure dimension
|
Appearance dimension (length x width x
height)
|
mm
|
6450×2050×2470(YTZ5070TXS70E )
6530×2050×2470
(YTZ5070TXS70F )
|
|
Wheel Tread
|
mm
|
3815
|
|
Wheel Tread
|
Front wheel
|
mm
|
1504
|
|
Rear wheel
|
mm
|
1425
|
|
Approach angle
|
(°)
|
24
|
|
Departure angle
|
(°)
|
22
|
|
Minimum ground clearance
|
mm
|
190
|
|
Major components
|
Gear pump, gerotor motor, hydraulic
cylinder
|
|
Oil pressure relief
|
Mpa
|
14
|
|
Hydraulic oil capacity
|
L
|
60
|
|
Control mode
|
Logic programme, alarm, etc
|
|
System voltage
|
12V
|
|
Working device system voltage
|
12V
|
|
Battery model
|
12V-70A.H
|
|
High pressure water pump
|
Type
|
Plunger type
|
|
Model
|
Italy KEB36
|
|
Pressure
|
10Mpa
|
|
Rotate speed
|
1150r/min
|
|
Water Valve
|
Type
|
Hydraulic control high pressure ball
valve
|
|
Pressure
|
10Mpa
|
|
Nozzle
|
Type
|
High pressure type
|
|
Water filter
|
type
|
Strainer type
|
|
Quantity of nozzle
|
|
34
|
