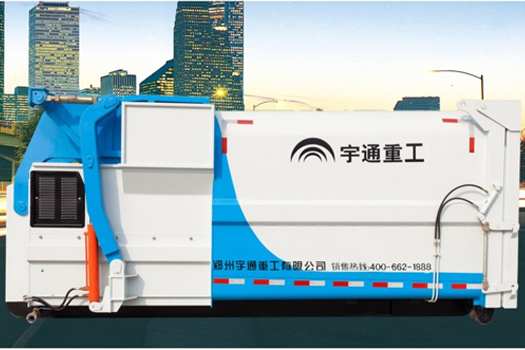

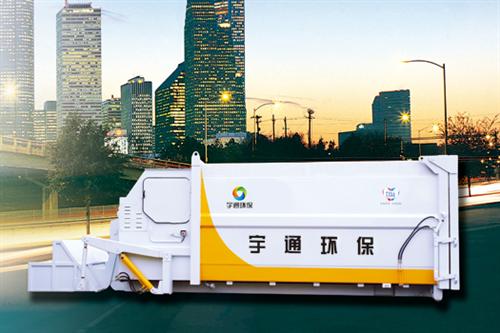

Mobile Compactor

S2000M self-contained trash compactor is configured with electrical control with 24V DC safe voltage and the interlocking device to avoid any accident due to improper operation. The hydraulic system is equipped with a single motor, a single pump, and a pressure relay to control the sequence of actions of the cylinder.



Performance features

1. The self-contained trash compactor has small footprint with low investment in civil engineering.
2. Compression: The S2000M mobile trash compactor adopts horizontal compress mode, whose working pressure can reach 16-18 MPa and maximum compression density can reach nearly 0.9. This will lead to great reduction of garbage volume and increase the loading capacity and transport efficiency, reduce the costs of garbage disposal and transportation.
3. Fewer Actions and Low Failure Rate: The garbage compression and loading can be achieved through self-contained trash compactor by only two steps. It is both simple and practical. The safety interlock has been established between the actions to prevent any accident due to improper operation and provide safe and reliable operations.
4. Flexible Movement: The S2000M mobile trash compactor can operate just in a truck space and can be moved to anywhere.
5. Easy Maintenance: The S2000M self-contained trash compactor is equipped with a special maintenance window. The hydraulic and electrical parts can be pulled out of the container for easy and safe maintenance.
6. Superior Applicability: S2000M mobile trash compactor is equipped with two control mode: the fixed operating panel and remote control, thus the worker can stand outside the safety operating distance for operation, which is safety, convenient and practical.
7. High mechanization performance: The entire process from garbage collection to garbage compression is fully automatic, while all procedures are controlled by the travel switch and proximity switch, which is characterized by accurate positioning and high degree of mechanical automation. Thereby it is able to improve working efficiency and reduce labor intensity.
8. Safe and Reliable Equipment Operation: S2000M self-contained trash compactor is configured with electrical control with 24V DC safe voltage and the interlocking device to avoid any accident due to improper operation. The hydraulic system is equipped with a single motor, a single pump, and a pressure relay to control the sequence of actions of the cylinder. The hydraulic system can be started at zero pressure. This improves the work efficiency and ensures quick and smooth equipment operation.

Technical Parameter

Item Parameter
Processing mode Press-fitting mode
Compressing mode Horizontal compressing
Volume of refuse which can be processed 15 t/h
Volume of feed bin ≥2.0m3
Volume of container ≥17 m3
Rated compressing force ≥300 kN
Max. compressing force ≥350 kN
no-load compressing cycling time ≤30 s
Feed mechanism cycling time ≤40 s
Total weight ≥6 t
Structure size ≤6500 mm×2500 mm× 2500 mm
Power 380V/50Hz/5.5kW
