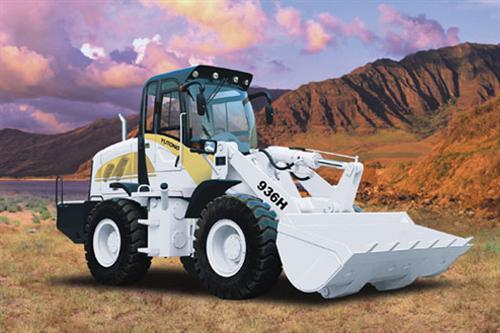

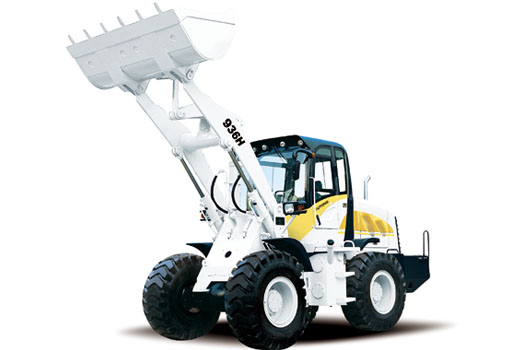

936H Wheel Loader

Good working performance
(1) By optimizing torque converter, the loading speed is raised greatly and the time for lifting dumping and falling is shortened.
(2) By enlarging the bucket, the charge ratio is increased which lead to a 10% increase on production efficiency.

High structural strength

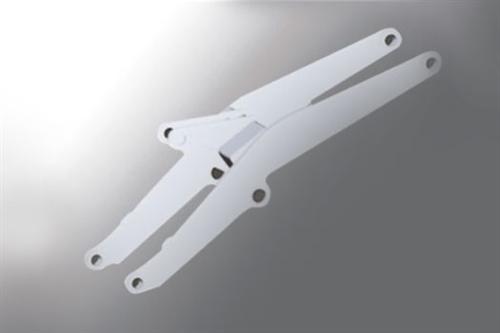

According to CAE analysis, we optimized the front and rear frame to make it stronger and more durable.



Performance Features

Good dynamic performance

(1) As an experienced earthmoving machinery manufacturer in China, we have developed a complete series of earthmoving machinery for sale. Series 936H light-duty wheel loader with 3 ton rated load is equipped with 92Kw State-II turbocharged engine which is featured with high horsepower, large torque reserve, energy saving and environment protection.
(2) YJ315 three-element single-stage single-phrase torque converter has the largest torque ratio of 3.23, which makes it more efficient.
(3) The wheel loader adopts fixed shaft power shift transmission with compact structure, reliable performance and convenient maintenance.
(4) Series 936H light-duty wheel loader adopts HD driving axle which has the characteristic of high carrying capacity and reliable performance.

Good working performance

(1) By optimizing torque converter, the loading speed is raised greatly and the time for lifting dumping and falling is shortened.
(2) By enlarging the bucket, the charge ratio is increased which lead to a 10% increase on production efficiency.

High structural strength

According to CAE analysis, we optimized the front and rear frame to make it stronger and more durable.

More comfortable during driving

(1) Series 936H light-duty wheel loader was accredited for design patent (patent number: ZL 200630301778.2), which is widely accepted by users. The wheel loader is designed with luxury cab and control elements according to automotive ergonomics, which makes the driving more comfortable. The design to enlarge the cab has ensured a larger interior space and a board vision, which makes it safer and more comfortable.
(2) The optimized hand brake and down/up shift make the operation more convenient and humanized.
(3) The heater blower in winter can ensure large discharge quantity of air; it has been designed with defrosting function, which has made the cab more comfortable; air conditioner is optional.

Parameters

External dimension (L × W × H) (mm) 7050×2510×3200
Rated load (kg) 3000
Rated dipper capacity(m3) 1.70
Weight of complete vehicle (kg) 10330
Maximum discharge height(mm) 3215
Discharge distance(mm) 1090
Sum of lifting, dumping and falling time(s) ≤9.6
Wheel base (mm) 2607
Tread width(mm) 1800
Break out force (kN) 103
Maximum traction force (kN) 100
Maximum driving speed(km/h) 35
Minimum turning radius 4929
Maximum grade ability (°) 25
