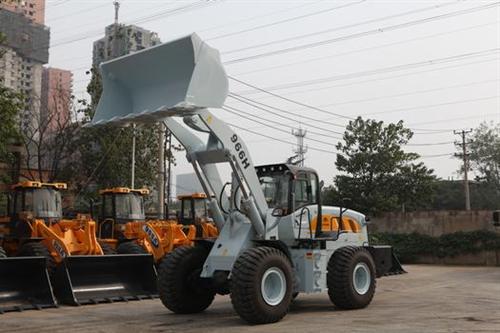

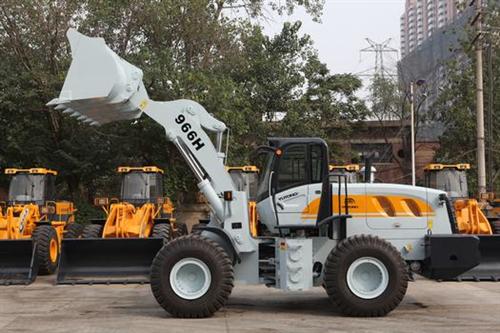

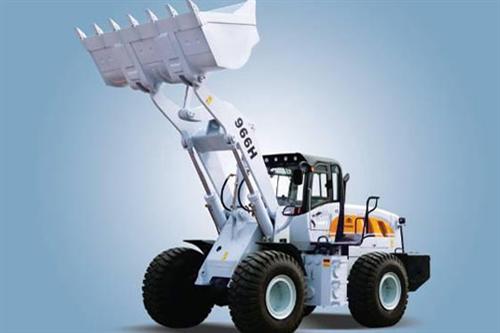

966H Wheel Loader

As an experienced earthmoving machinery supplier in China, we have developed a complete series of earthmoving machinery for sale. Series 966H heavy-duty wheel loader has the maximum breakout force of 185kN and the maximum traction of 196kN.



Product Features

As an experienced earthmoving machinery supplier in China, we have developed a complete series of earthmoving machinery for sale.

1. Powerful:
(1) Series 966H heavy-duty wheel loader has the maximum breakout force of 185kN and the maximum traction of 196kN.
(2) The machine is equipped with Shangchai 187kw supercharged diesel engine with state-II emission and it is featured with big coefficient of torque reserve.
(3) 420 hydraulic torque converter made according to military technology has the largest torque ratio of 3.7 and wide high-efficient area.
(4) The series 966H heavy-duty wheel loader adopts fixed shaft hydraulic power shift transmission made according to military technology, which is featured with big modulus and big transmitted power.
(5) Big modulus driving axle made according to military technology has the advantage of strong load-carrying capacity up to 30t.

2.High Efficiency:
(1) The transmission components of the wheel loader are well matched to reach high work efficiency through reasonably distribution of startup and acceleration.
(2) The heavy-duty wheel loader with 6 ton rated load has high loading efficiency with the discharge height up to 3432mm and the discharge distance up to 1255mm.

3. High Strength:
(1) The front and rear frame optimized according to CAE analysis become stronger and more durable.
(2) Long wheelbase and oversize counterweight make the wheel loader more stable.
(3) The heavy-duty wheel loader with 6 ton rated load is designed with centered swing axle structural support which has strong bearing capacity.

4. Comfortable Control:
(1) Hydraulic single-rod pilot control is easy and flexible; the hydraulic control valve is located in the front side of the front frame, which is convenient for maintenance.

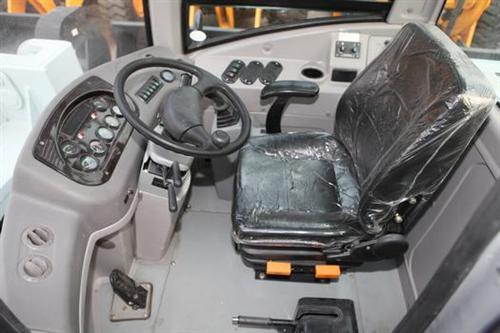

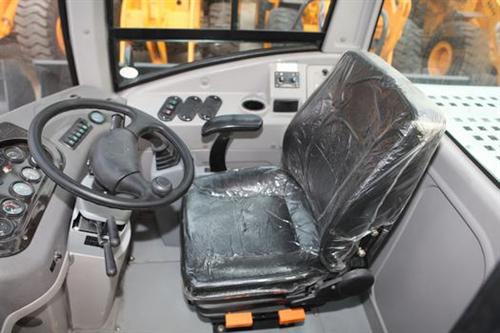

(2) The cab is designed according to cushion technique, which is able to relieve fatigue.
(3) The wheel loader is equipped with reasonably arranged heater blower and high-efficient air conditioner, so that the cab can be kept warm in winter and cool in summer.

5. Long Service Life:
(1) Hydraulic joint is designed with double seal by adopting German technology, which has excellent sealing property.
(2) The heavy-duty wheel loader adopts dual-pump-converging technology to reduce power loss and enhance its reliability.
(3) The heavy-duty wheel loader adopts pre-pressing hydraulic tank to ensure the fat liquor cleanliness and prevent the foul air from entering the tank.
(4) The integrated quenching blade and tooth have the characteristics of wear-resistance and long service life.

Technical Parameters

Dimension(mm) 8705 ×3130×3450
Rated load (t) 6.0
Standard dipper capacity (m3) 3.5
Total weight(t) 20.1-20.5
Discharge height(mm) 3432
Wheel load(mm) 1255
Sum of lifting, dumping and falling time(s) ≤12.0
Wheel base(mm) 3285
Wheel track(mm) 2310
Break out force(kN) 185
Maximum drawbar pull(kN) 196
Steering angle(°) 36
Maximum speed(km/h) 46
Minimum turning radius 6255
Maximum gradeability(°) 25
