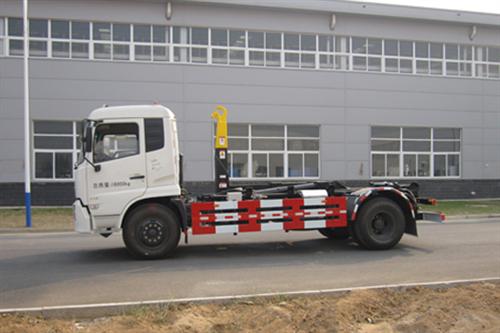

14T Roll-on/Roll-off Truck (YTZ5160ZXX20E)
The roll-on/roll-off truck adopts internationally famous pull arm superstructure, which is characterized by advanced technology and reliable quality. The inner and outer surface of the container is coated with double-component complex paint, characterized by superior corrosion resistance property.
Performance features
1. The YTZ5160ZXX20E roll-on/roll-off truck adopts Dongfeng Tianjin Chassis with reliable performance and economical efficiency.
2. The hydraulic components applies original imported products with long service life.
3. Pull arm structural parts is made of and weld by high strength steel sheet, which is featured with high quality and reliable structure.
4. The roll off trash truck dumpster introduces high security electric-liquid interlock control.
5. Hydraulic system adopts slow falling control mechanism to relieve the shock caused from the container to the main frame as much as possible.
6. The YTZ5160ZXX20E roll-on/roll-off truck adopts electric-gas-liquid control, which is able to control the whole truck inside the cab and to do emergency control outside the cab.
7. The rear wheel support device is weld by high strength steel, which is able to avoid the truck head from tilting.
Technologe performance
|
model
|
YTZ5160ZXX20E
|
|
Dimension (mm)
|
7150X2490X3100
|
|
Max. Total mass (kg)
|
16000
|
|
Rated load (kg)
|
8065
|
|
Wheelbase mm
|
4200
|
|
Engine power kW/(r/min)
|
155/2500
|
|
Max. speed(km/h)
|
90
|
|
Approach angle/Departure angle(°)
|
20/19
|
|
Minimum diameter of turning circle(m)
|
19
|
|
Max. lifting load(t)
|
14
|
|
Width of the container(mm)
|
1070/910
|
|
Stuffing time(s)
|
< 60
|
|
Lifting time(s)
|
< 60
|
|
Maximum lifting angle(°)
|
48
|
|
Height of hook center (mm)
|
1570
|
