Road Wrecker

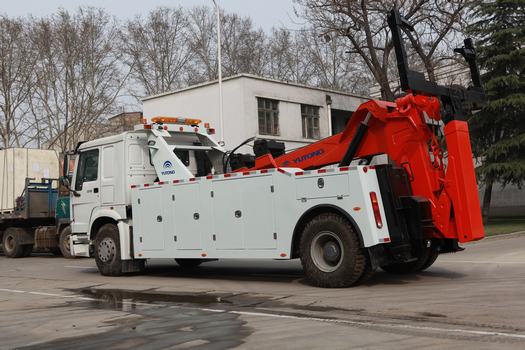

Integrated tow truck manufactured by our company can be divided into 3 kinds including two-axle road wreckers, three-axle road wreckers and five-axle road wreckers. Among which, two-axle road wreckers and three-axle road wreckers are equipped with extended and thin-type supporting arms made of high-strength steel to greatly enhance the strength performance and effectively solve the problem of low chassis of buses. Five-axle road wreckers are developed for road rescue and their hoisting capacity is greatly improved. The integrated tow truck has the following characteristics



Performance features

1. Working device has superior performance
The working device is featured with reasonable structure by adopting three-dimensional simulation design; its key components are made of high strength steel, which ensure reliable quality. The working device is composed of hoisting arm and supporting arm. The tow truck has a wide application range by adopting hydraulic drive; it has many functions such as pulling, hoisting, and dragging and so on.

2. Supporting arm plays assistant role in the adjustment
The lifting mechanism adopts connecting bracket with adaptive adjusting hinged point to greatly enhance the swinging ability of the supporting arm. During the lifting operation, the connecting bracket can cooperate with the lifting action of hoisting arm and constantly adjust the effective clearance between the supporting arm and the truck’s front bumper, so as to ensure the safe and reliable lifting operation.

3. Key hydraulic parts, electrical components are imported
The key hydraulic parts and electrical components of the integrated tow truck such as multiple directional control valve, balance valve, seals (for hydraulic cylinder and pipes), electrical control handles, etc are imported quality products. Therefore, the quality of complete truck is reliable and the service life is long.

4. The use of two-way synchronous control systems
Both sides of the integrated tow truck are equipped with control systems. The control handles are placed with an angle of inclination of 45°, providing better visual effect and more reasonable and comfortable control posture.

YTZ5197TQZ40EN


Technical Parameters of YTZ5197TQZ40EN Road Wrecker (Two Axles)

Overall dimension of complete vehicle (mm) 8810×2500×3290
Wheelbase (mm) 5600
Wheel track of front wheel (mm) 2022
Wheel track of rear wheel (mm) 1830
Maximum under-pulling capacity (kg) 19000
Maximum hoisting-pulling capacity (kg) 12000
Furthest hoisting-pulling capacity (kg) 5800
Telescopic stroke of boom (mm) 2500
Maximum hoisting height (mm) 5500
Maximum lift angle (°) 35
Rated tractive force of winch (kN) 80
Number of winch 2
Maximum under-hoisting capacity (kg) 6400
Maximum under-hoisting capacity in full-extension condition (kg) 5000
Maximum efficient under-hoisting length (mm) 3900
Telescopic stroke of support arm (mm) 925×2
Folding angle of support arm (°) -7~+92°
Kerb mass of entire vehicle (kg) 14500
Maximum vehicle speed (km/h) 90
Maximum gradeability (%) ≥20
Maximum turning diameter (m) ≤23
Minimum ground clearance (m) ≥260
Approach angle (°) 16
Departure angle (°) 15

YTZ5257TQZ40EN

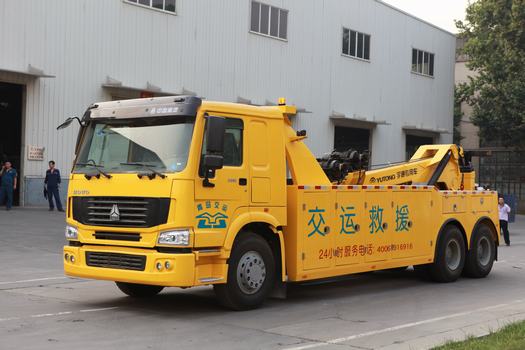

Technical Parameters of YTZ5257TQZ40EN Road Wrecker (Three Axles)

Overall dimension of complete vehicle (mm) 10475×2500×3290
Wheelbase (mm) 5825+1350
Wheel track of front wheel (mm) 2022
Wheel track of rear wheel (mm) 1830
Maximum under-pulling capacity (kg) 25000
Maximum hoisting-pulling capacity (kg) 16000
Furthest hoisting-pulling capacity (kg) 6000
Telescopic stroke of boom (mm) 3300
Maximum hoisting height (mm) 6500
Maximum lift angle (°) 35
Rated tractive force of winch (kN) 80
Number of winch 2
Maximum under-hoisting capacity (kg) 7200
Maximum under-hoisting capacity in full-extension condition (kg) 5000
Maximum efficient under-hoisting length (mm) 3900
Telescopic stroke of support arm (mm) 925×2
Folding angle of support arm (°) -7~+92°
Kerb mass of entire vehicle (kg) 17400
Maximum vehicle speed (km/h) 90
Maximum gradeability (%) ≥20
Maximum turning diameter (m) ≤23
Minimum ground clearance (m) ≥280
Approach angle (°) 16
Departure angle (°) 19

YTZ5507TQZ40E

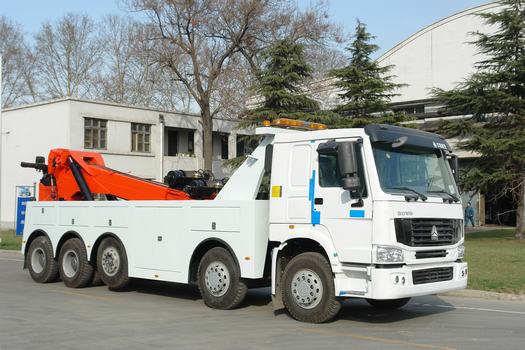

Technical Parameters of YTZ5507TQZ40E Road Wrecker (Five Axles)

Overall dimension of complete vehicle (mm) 11185×2500×3290
Wheelbase (mm) 1950+3075+1375+1350
Wheel track of front wheel (mm) 2022
Wheel track of middle and rear wheels (mm) 2022/1830
Maximum under-pulling capacity (kg) 50000
Maximum hoisting-pulling capacity (kg) 45000
Furthest hoisting-pulling capacity (kg) 15000
Telescopic stroke of boom (mm) 3500
Maximum hoisting height (mm) 7000
Maximum lift angle (°) 35
Rated tractive force of winch (kN) 150
Number of winch 2
Maximum under-hoisting capacity (kg) 18000
Maximum under-hoisting capacity in full-extension condition (kg) 12800
Maximum efficient under-hoisting length (mm) 3560
Telescopic stroke of support arm (mm) 940×2
Folding angle of support arm (°) -7~+92°
Kerb mass of entire vehicle (kg) 32400
Maximum vehicle speed (km/h) 90
Maximum gradeability (%) ≥35
Maximum turning diameter (m) ≤24
Minimum ground clearance (m) ≥243
Approach angle (°) 16
Departure angle (°) 14
