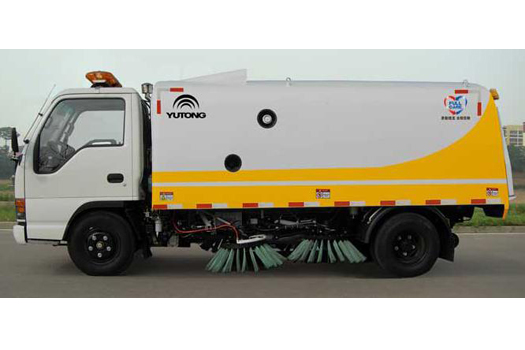

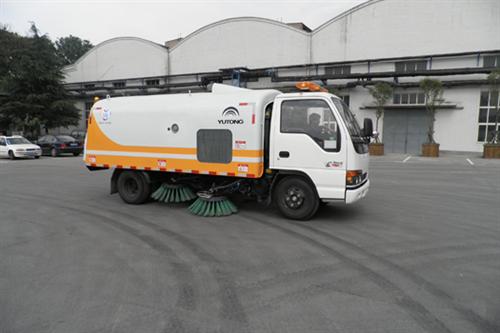

YTZ5050TSL70E Sweeper Truck

As an environmental sanitation equipment, the road sweeper integrates road sweeping, garbage collection and garbage transportation into one machine, which is widely used for sweeping arterial highway, airfield pavement, uptown and park, etc. Our street sweeper has two models including YTZ5050TSL70E and YTZ5060TSL70F.



Performance features

1. The sweeper truck adopts the state-of-art technologies including touch screen control, LCD monitor system, and GPS position services, etc., while the key parts are made of well-known brands at home and abroad.
2. The ISUZU auxiliary engine mounted on the road sweeper is featured with fuel efficient and superior emissions, which truly embody the design concept of fuel-efficient and environmentally friendly.
3. The pumping and suction system has been optimized by the academician workstation, thereby enabling reasonable system matching and the industry's lowest power consumption.
4. The street sweeper widely adopts the finite element analysis software in design, which not only can meet the requirements of stiffness and strength, but also greatly reduces the dead weight.

Parameter

Item parameter

1. Dimension parameter

Boundary dimension Appearance dimension (length x width x height) 5650×2000×2350mm
Front overhang Front suspension 1015mm
Rear overhang Rear suspension 1275mm
Approach angle Angle of Approach 24°
Departure angle Angle of Departure 25°
Minimum ground clearance Minimum Ground Clearance 190mm
Capacity of the garbage tank Volume of garbage compartment 5m3
Water tank volume Volume of water tank 1100L

2. Mass parameters

Curb weight Kerb mass 4420kg
Front axle unladen weight Unladen weight of front axle 1800kg
Rear axle unladen weight Unladen weight of rear axle 2620kg
Front axle full load weight Gross weight of front axle 1920kg
Rear axle full load weight Gross weight of rear axle 3380kg
Max. Total mass Max. gross mass 5300kg (including two crew)

3. Performance Parameter

Sweeping width 2.5-3.2m
Operating speed 3-15km/h
Maximum Speed 98 km/h
Inclination angle of garbage self-dumping 60°
The maximum sweeping efficiency 96%
Working fuel consumption (8Km/h) 6.8L/h
Driving fuel consumption 10.6L/100km
