Performance Features

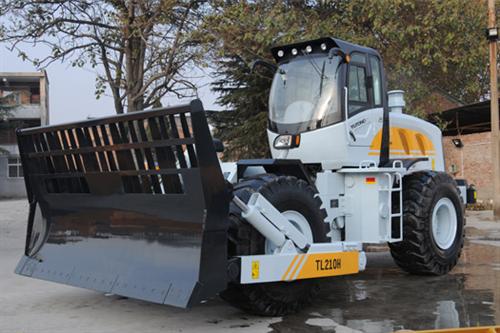

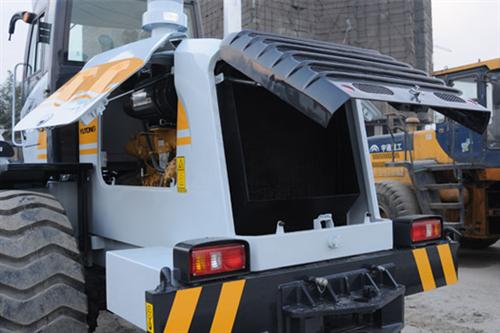

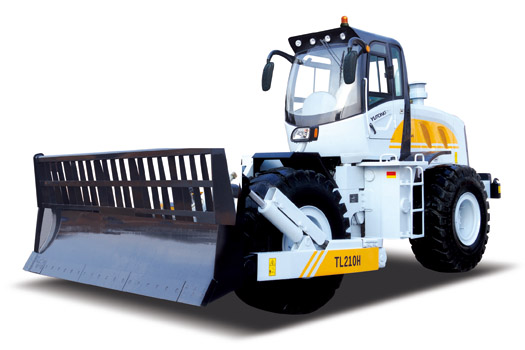

1. The TL210H wheel bulldozer adopts Weichai supercharged diesel engine with high reliability, powerful driving force, and big powerman margin, low oil consumption. It introduces new-type combined prefilter to avoid abrasion.
2. The transmission parts are produced according to the military technology. The torque converter is featured with big circulating circle, big torque ratio and broad high efficiency area, which ensure the powerful traction of the wheel dozer.
3. The hydraulic pipeline adopts "cone-O” double seal with the advantage of good sealing property and high anti-permeability.
4. Being equipped with maintenance-free battery, sealed waterproof connector clip and combination switch, the electric system of the wheel bulldozer is safer, easier to operate and more reliable performance.

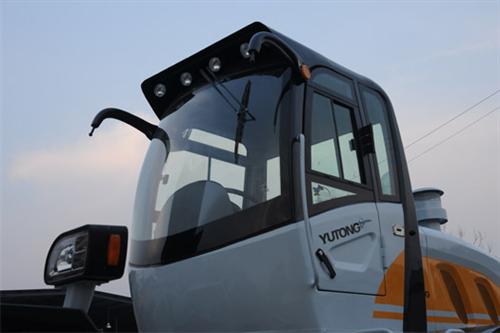

5. The wheel bulldozer is equipped with luxury cab designed according to automotive ergonomics with broad vision and luxury interior trim. Also, being equipped with shock-resistant seat, air conditioner, audio, the machine is more safe and comfortable.
6. Tl240H wheel dozer is featured with fast speed, powerful traction and high work efficiency; it is able to tow 20~30T flatbed trailer to transport large machineries.

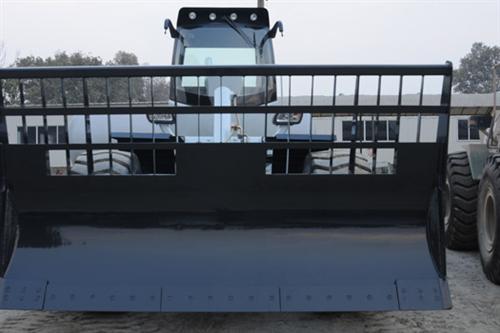

7. The wheel dozer can also be equipped with garbage and snow shovels to meet different working conditions.
Technical Parameters
|
Overall size (L × W × H)(mm)
|
7275×3390×3465
|
|
Wheelbase(mm)
|
3470
|
|
Tread(mm)
|
2240
|
|
Height of Scraper Knife(mm)
|
1000
|
|
Operating weight(t)
|
15.5
|
|
Maximum lifting height of blade(mm)
|
1000
|
|
Maximum Digging depth of blade(mm)
|
400
|
|
Maximum Tilt height of blade(mm)
|
500
|
|
Gradeability (°)
|
25
|
|
Minimum turning radius(mm)
|
6545
|
|
Minimum ground clearance(m)
|
400
|
|
Steering angle(°)
|
±36
|
|
Engine Rated power(kW)
|
162
|
|
Maximum tractive force(kN)
|
125
|
|
Transmission gear
|
Four forward gears, four reverse gears
|
|
Forward/back speed gearⅠ(km/h)
|
0~7.5
|
|
Forward/back speed gearⅡ(km/h)
|
0~14.9
|
|
Forward/back speed gearⅢ(km/h)
|
0~38.0
|
|
Forward/back speed gearⅣ(km/h)
|
0~49.3
|
