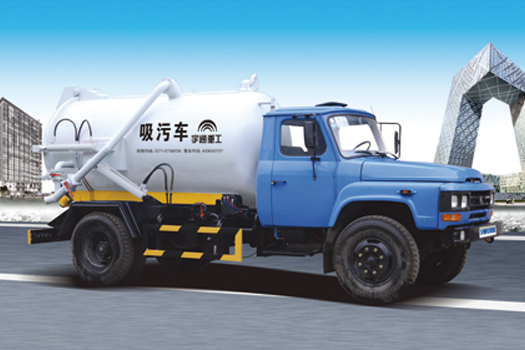

1. The vacuum pump of the sewage suction truck adopts the truck-mounted pump provided by the professional manufacturer, which is featured with compact enclosure, low rotation speed (energy saving), high vacuum degree (its vacuum degree is up to 99.6%), wide operating pressure range (its absolute limit working pressure is ranging from 200 to 8500Pa), low noise, low power consumption and high efficiency, etc.
2. The sealing elements for the key components of the hydraulic hoisting system are made of imported parts, while the double-acting lift cylinder and control valve adopt the domestic well-known brand products.
3. The tank body is cylindrical and the end socket is oval, so that the tank body is subject to uniform stress.
4. As the tank is mounted with the transverse swash plates to reduce the impact on the tank during the driving process of the vacuum sewage suction truck, thereby ensuring the smooth running of the vehicle; additionally, the inner surface of the tank is provided with stiffening rings to ensure that there is no deformation and deflation on the tank body under negative pressure pumping state. Besides, the interior part of the tank has been carried out antiseptic treatment to effectively prevent corrosion on the tank by medium.
5. The air exhaust piping at the top of the tank is mounted with the anti-spill valve, which can effectively prevent dirt into the vacuum pump of the pneumatic circuit and spills.
6. As a well-known sewage suction truck supplier in China, we guarantee to provide our customer with quality products.
Technical Parameters of YTZ5108GXW20E Sewage Suction Truck
|
Product model
|
YTZ5108GXW20E
|
|
Chassis model
|
EQ1108KJ
|
|
Chassis manufacturer
|
Dongfeng Automobile Co., Ltd.
|
|
Overall dimensions(L × W × H)(mm)
|
6965X2400X3130
|
|
Engine model
|
B170 33
|
|
Engine manufacturing plant
|
Dongfeng Cummins Engine Co., Ltd.
|
|
Rated power (kW/rpm)
|
125/ 2500
|
|
Maximum torque (Nm/rpm)
|
700/1200~1700
|
|
Wheelbase (mm)
|
3950
|
|
Approach/Departure angle(°)
|
25/18
|
|
Maximum speed (km/h)
|
90
|
|
Maximum gross weight (kg)
|
10500
|
|
Rated loading weight (kg)
|
3525
|
|
Drive Mode
|
4×2
|
|
Wheelbase (front/rear) (mm)
|
1900/1800
|
|
Max. Gradeability %
|
25
|
|
Minimum ground clearance (mm)
|
≥240
|
|
Minimum turning diameter (m)
|
≤16
|
|
Curb weight (kg)
|
6780
|
|
Tank volume (m3)
|
6.0
|
|
Tyre model
|
9.00R20 (steel wire tyre)
|
|
Vacuum pump
|
Rated revolution speed ( r/min)
|
500
|
|
Maximum vacuum degree (%)
|
99．6
|
|
Theoretical pumping speed ( L/S)
|
45
|
|
Effective suction stroke (m)
|
≥4.5
|
Technical Parameters of YTZ5120GXW20F Sewage Suction Truck
|
Product model
|
YTZ5120GXW20F
|
|
Chassis model
|
EQ1128GLJ
|
|
Chassis manufacturer
|
Dongfeng Motor Company Limited
|
|
Overall dimensions(L × W × H)(mm)
|
7360X2480X3300
|
|
Engine model
|
YC6J180-42(ISDe180 40,ISB170 40,YC6J160-46)
|
|
Engine manufacturing plant
|
Guangxi Yuchai Machinery Co., Ltd.
|
|
Rated power(kW/rpm)
|
6500/ 132(4500/132,5900/125,6494/118
|
|
Wheelbase(mm)
|
3950
|
|
Approach/Departure Angle(°)
|
30/16
|
|
Maximum speed(km/h)
|
95
|
|
Maximum gross weight(kg)
|
12490
|
|
Rated loading weight(kg)
|
6045
|
|
Drive Mode
|
4×2
|
|
Wheelbase (front/rear)(mm)
|
1900/1800
|
|
Max. Gradeability(%)
|
30
|
|
Minimum ground clearance(mm)
|
≥260
|
|
Curb weight(kg)
|
6250
|
|
Tank volume(m3)
|
7．93
|
|
Tyre model
|
9.00-20
|
|
Vacuum pump
|
Rated revolution speed ( r/min)
|
500
|
|
Maximum vacuum degree (%)
|
99．6
|
|
Theoretical pumping speed ( L/S)
|
45
|
|
Effective suction stroke (m)
|
≥4.5
|
