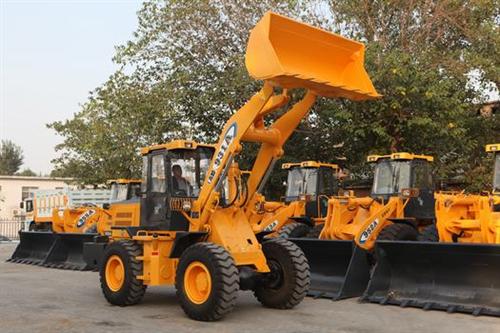

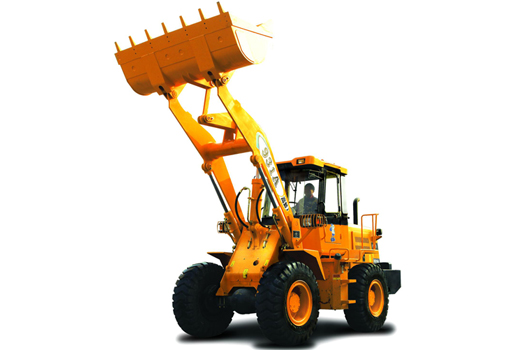

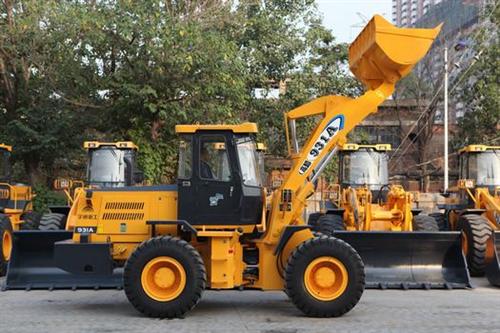

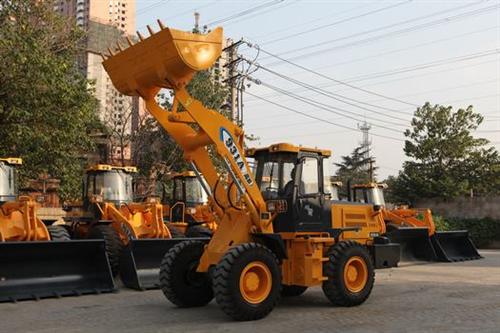

931A Wheel Loader

The series 931A compact wheel loader adopts high performance Yuchai State-II turbocharged engine which is featured with high output power, low oil consumption, energy saving, environmental protection and reliable quality. The wheel loader with 3 ton rated load bucket is equipped with torque converter, Hangchi transmission and HD driving axle to make it more powerful.



Performance Features

The multi-way valve is post positioned and the control by linkage rod is adopted to achieve flexible operation and smooth handling. The series 931A compact wheel loader is flexible in steering with small turning radius. By optimizing torque converter, the traction is greatly enhanced and the wheel loader becomes quicker in loading speed, powerful in breakout force, high-efficient, environmental protection and low oil-consumption which will bring you great wealth.

Technical Parameters

External dimension (L × W × H) (mm) 7030×2510×3185
Rated load (kg) 3000
Rated dipper capacity(m3) 1.70
Weight of complete vehicle (kg) 10330
Maximum discharge height(mm) 3215
Discharge distance(mm) 1090
Sum of lifting, dumping and falling time(s) ≤9.6
Wheel base (mm) 2607
Tread width(mm) 1800
Break out force (kN) 103
Maximum traction force (kN) 100
Maximum driving speed(km/h) 35
Minimum turning radius 4929
Maximum grade ability (°) 25
