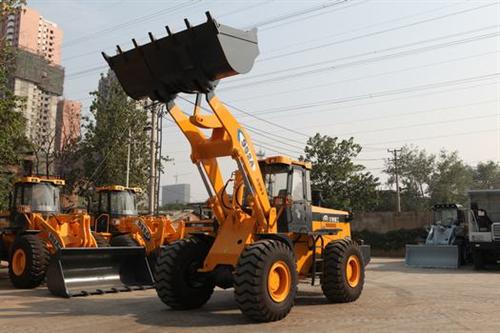

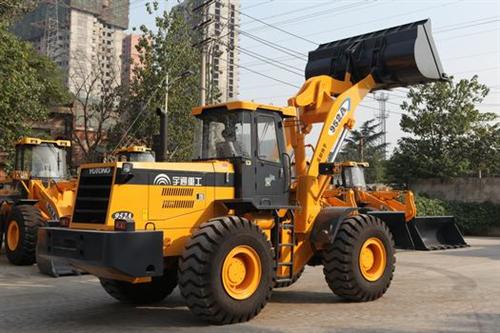

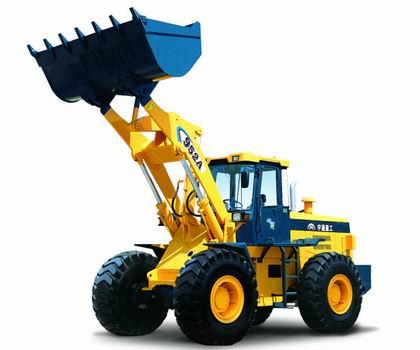

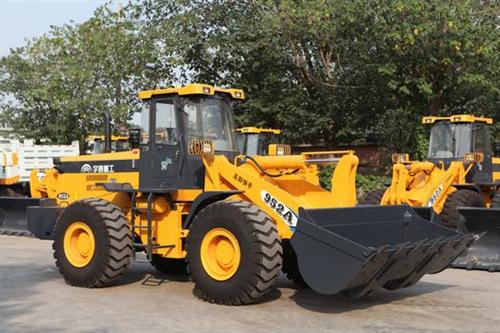

952A Wheel Loader

The Series 952A heavy-duty wheel loader is equipped with high performance Weichai second-stage supercharged engine which is featured with high output power and low oil consumption to ensure reliable quality and economic price. The wheel loader with 5 ton rated load bucket adopts reliable and high performance Hangchi hydraulic power shift transmission and HD driving axle as well.


Performance Features

The frames are symmetrically arranged, which is featured with small steering force, convenient and flexible operation. The standard 3450mm discharge height has realized higher discharge. The Series 952A heavy-duty wheel loader has the characteristics of fast loading speed and huge power proved by the motor point of the optimized single-bellcrank implement, time of 9.8s for three elements, and 170kN breakout force.

Technical Parameters

External dimension (L × W × H) (mm) 8205×3000×3450
Rated load (kg) 5
Rated dipper capacity(m3) 2.7-4.2
Standard dipper capacity(m3) 2.7
Weight of complete vehicle (t) 16.5-16.9
Maximum discharge height(mm) 3450
Wheel base (mm) 1070
Sum of lifting, dumping and falling time(s) ≤9.8
Wheel base (mm) 3200
Tread width(mm) 2200
Break out force (kN) 170
Maximum traction force (kN) 150
Steering angle(°) 37
Maximum driving speed(km/h) 38
Minimum turning radius 5890
Maximum grade ability (°) 30
