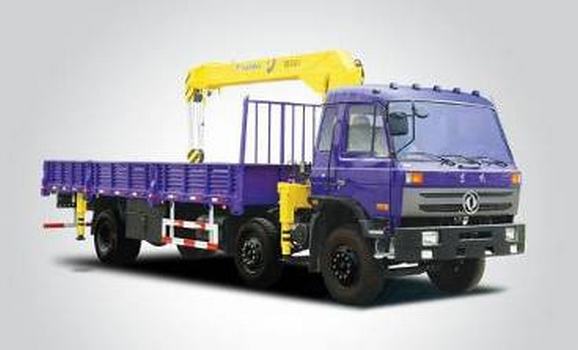

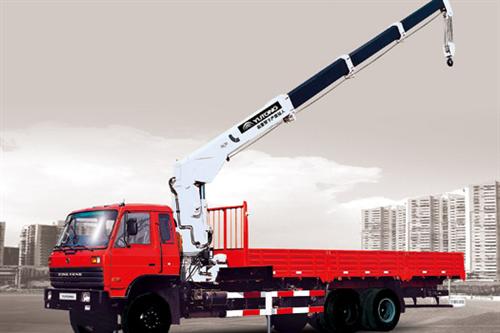

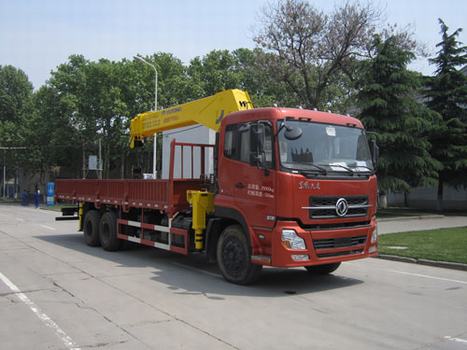

Truck-Mounted Crane

The newly developed truck-mounted crane with imported original key components is a kind of special purpose vehicle with the advantages of high reliability, strong hoisting and loading ability, reasonable design and easy operation. It is widely used in the traffic and transport, civil engineering, electric power, petroleum, stone industry, etc.



Performance features

1. The lorry crane adopts hexagonal boom technology with good centering performance and high flexural strength; the machine is featured with high strength, low weight and good hoisting capacity by adopting high-strength special steel.
2. The truck-mounted crane is equipped with strong undercarriage and turntable which are 10% larger than those produced by other manufacturers. So that it is featured with safer hoisting performance, larger hoisting capacity and long service life.
3. The design of 360 ° full-rotating facilitates the usage and maximizes the working efficiency.
The operation levers posted with visualized marks are installed at both sides of the crane, which provide a convenient operation. The operation of standard lever is extremely easy without operation fatigue.
4. Booms adopt synchronous retraction mode which is featured with high speed and high efficiency; and at the same time it is able to increase hoisting capacity and extend crane's service life.
5. The truck-mounted crane adopts large displacement oil pump. When the engine is running at idle, the operating device can run quickly to save energy and fuel, and create greater value for the customer.
6. Hydraulic system can be interlocked when the operator gets on and off the crane, in order to avoid misoperation and ensure safe and reliable operation.
7. Optimized high-level sub-frame structure improves the strength of the frame.
8. Through cooperation with chassis manufacturers such as Dongfeng, the chassis performance parameters can be reasonably matched with the truck loader crane performance parameters, which help to greatly increase the overall operation performance of the crane.

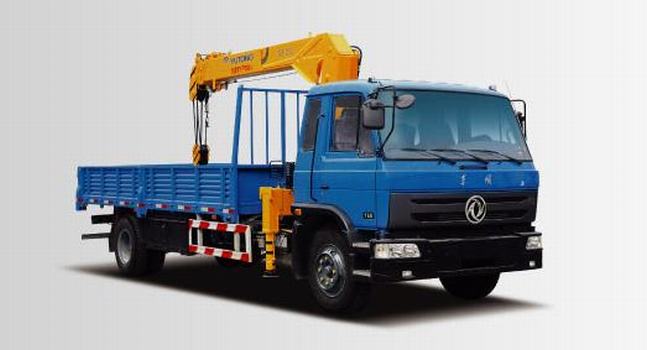

EQ5168JSQL


Technical Parameter of EQ5168JSQL Truck-Mounted Crane (6.3t)

Declared external dimension (mm) 9000×2500×3650
Actual external dimension (mm) 9100(9400)×2500×3650
Chassis model EQ1168GLJ2
Dimension of car body 5700×2300×550
Total Weight(kg) 9710
Rated load (Kg) 7955
Maximum vehicle speed (km/h) 95
Wheelbase (mm) 5100
Front suspension/rear suspension (mm) 1250\2650
Approach angle/departure angle(°) 30/24
Wheel track of front wheel (mm) 1900
Wheel track of rear wheel (mm) 1800
Crane Model SQ6.3SA3
Max. rating load(kg) 6300
Max. working range (m) 11.2
Max. lifting height(m) 13

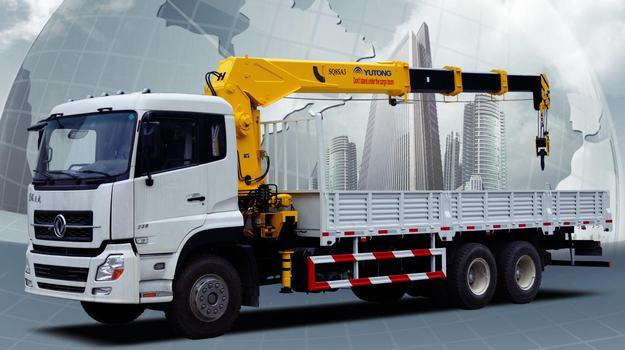

YTZ5200JSQ20E

Technical Parameter of YTZ5200JSQ20E Truck-Mounted Crane (8t)

Declared external dimension (mm) 11000×2500×3800
Actual external dimension (mm) 11000×2500×3800
Chassis model DFL1200AX9
Dimension of car body 7400×2300×550
Total Weight(kg) 15206
Rated load (Kg) 6730
Maximum vehicle speed (km/h) 90
Wheelbase (mm) 5350+1300
Front suspension/rear suspension (mm) 1460\2890
Approach angle/departure angle(°) 20/12
Wheel track of front wheel (mm) 1986
Wheel track of rear wheel (mm) 1860
Crane Model SQ8SA3
Max. rating load(kg) 8000
Max. working range (m) 11.2
Max. lifting height(m) 14.5

YTZ5250JSQ20E


Technical Parameter of YTZ5250JSQ20E Truck-Mounted Crane (8t)

Declared external dimension (mm) 11350×2500×3820
Actual external dimension (mm) 11350×2500×3820
Chassis model EQ5250JSQFJ
Dimension of car body 7700×2300×550
Total Weight(kg) 14840
Rated load (Kg) 9485
Maximum vehicle speed (km/h) 90
Wheelbase (mm) 2150+4850
Front suspension/rear suspension (mm) 1250\3100
Approach angle/departure angle(°) 34/10
Wheel track of front wheel (mm) 1940/1940
Wheel track of rear wheel (mm) 1860
Crane Model SQ10SA3
Max. rating load(kg) 10000
Max. working range (m) 13.6
Max. lifting height(m) 15

YTZ5250JSQ21E


Technical Parameter of YTZ5250JSQ21E Truck-Mounted Crane (12t)

Declared external dimension (mm) 11960×2500×3850
Actual external dimension (mm) 11960×2500×3850
Chassis model DFL1250A9
Dimension of car body 8200×2300×550
Total Weight(kg) 17825
Rated load (Kg) 7180
Maximum vehicle speed (km/h) 90
Wheelbase (mm) 5700+1300
Front suspension/rear suspension (mm) 1460\3500
Approach angle/departure angle(°) 20\10
Wheel track of front wheel (mm) 1986
Wheel track of rear wheel (mm) 1860
Crane Model SQ12SA3
Max. rating load(kg) 12000
Max. working range (m) 13.6
Max. lifting height(m) 15
