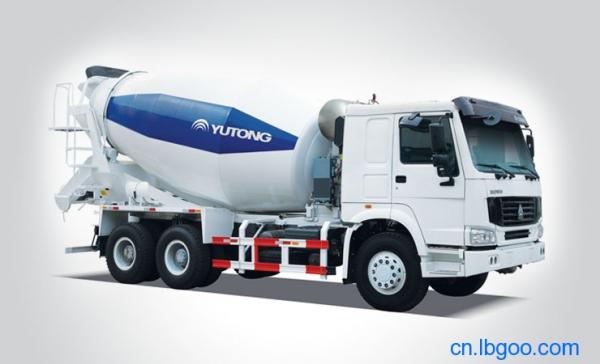

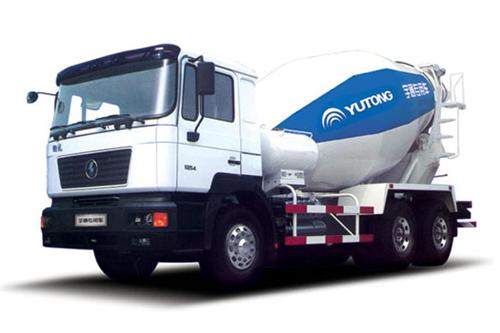

Concrete Mixer Truck

Yutong concrete mixer truck introduces advanced technology from abroad and matches original imported hydraulic system manufactured by world famous company to ensure excellent performance and reliable quality. Currently we have already developed a series of special purpose vehicle for Sale with different specifications by matching chassis produced by well-known manufacturers in domestic market such as Sinotruk, Dongfeng Automobile. Our cement mixer truck has following characteristics



Performance Feature

High strength, durable and long service life

(1) The tank body and main structure are made of low alloy steel, which ensure high strength and good wear resistance.
(2) The truck adopts dual sealing head structure with reinforcing plates added outside and stiffeners added inside to improve its rigidity.

High working efficiency

(1) Optimized double helical blades are used in the tank body to realize low rotation speed and high displacement.
(2) Front cone of the tank body is fitted with 2 forced stirring blades to enhance mixing function and effectively prevent dilution.

Attractive appearance

The cement mixer truck is processed by stoving varnish technique and it appears nice and generous.

YTZ5255GJB33E


Technical Parameters of YTZ5255GJB33E Concrete Mixer Truck (8m3)

Model YTZ5255GJB33E
Declared external dimension (mm) 9400×2500×3990
Actual external dimension (mm) 8930×2500×3910
Chassis model ZZ1257N3847C
Curb weight of complete crane (kg) Actual: 14400 (Declared: 15050)
Rated load (Kg) 9820
Maximum vehicle speed (km/h) 90/102
Wheelbase (mm) 3625+1350
Front suspension/rear suspension (mm) 1500/2725
Approach angle/departure angle(°) 16/19
Wheel track of front wheel (mm) 2022,2041
Wheel track of rear wheel (mm) 1830/1830
Tyre 12.00-20 Common tyre
Agitating volume (cubic meter) 8
Feed rate (cubic meter/minute) ≥2.7
Discharge rate (cubic meter/minute) ≥0.65
Discharging residual ratio (%) ≤0.5
Rotating speed of mixing drum (r/min) 0—14

YTZ5255GJB34E


Technical Parameter of YTZ5255GJB34E Concrete Mixer Truck (9m3)

Model YTZ5255GJB34E
Declared external dimension (mm) 9400×2500×3990
Actual external dimension (mm) 9040×2500×3980
Chassis model ZZ1257N3847C
Curb weight of complete crane (kg) Actual: 14400 (Declared: 15050)
Rated load (Kg) 9820
Maximum vehicle speed (km/h) 90/102
Wheelbase (mm) 3625+1350
Front suspension/rear suspension (mm) 1500/2725
Approach angle/departure angle(°) 16/19
Wheel track of front wheel (mm) 2022,2041
Wheel track of rear wheel (mm) 1830/1830
Tyre 12.00-20 Common tyre
Agitating volume (cubic meter) 9
Feed rate (cubic meter/minute) ≥2.7
Discharge rate (cubic meter/minute) ≥0.65
Discharging residual ratio (%) ≤0.5
Rotating speed of mixing drum (r/min) 0—14

YTZ5255GJB35E


Technical Parameter of YTZ5255GJB35E Concrete Mixer Truck (10m3)

Model YTZ5255GJB35E
Declared external dimension (mm) 9400×2500×3990
Actual external dimension (mm) 9325×2500×3995
Chassis model ZZ1257N3847C
Curb weight of complete crane (kg) Actual:15340(Declared: 15050)
Rated load (Kg) 9820
Maximum vehicle speed (km/h) 90/102
Wheelbase (mm) 3825+1350
Front suspension/rear suspension (mm) 1500/2725
Approach angle/departure angle(°) 16/19
Wheel track of front wheel (mm) 2022,2041
Wheel track of rear wheel (mm) 1830/1830
Tyre 12.00-20 Common Tyre
Agitating volume (cubic meter) 10
Feed rate (cubic meter/minute) ≥2.7
Discharge rate (cubic meter/minute) ≥0.65
Discharging residual ratio (%) ≤0.5
Rotating speed of mixing drum (r/min) 0—14

YTZ5255GJB36E


Technical Parameter of YTZ5255GJB36E Concrete Mixer Truck (12m3)

Model YTZ5255GJB36E
Declared external dimension (mm) 9820×2500×3995
Actual external dimension (mm) 9905×2500×4090
Chassis model ZZ1257N4048W
Curb weight of complete crane (kg) Actual:15960(Declared: 14620)
Rated load (Kg) 10250
Maximum vehicle speed (km/h) 86/97
Wheelbase (mm) 4025+1350
Front suspension/rear suspension (mm) 1500/2945
Approach angle/departure angle(°) 16/19
Wheel track of front wheel (mm) 2022,2041
Wheel track of rear wheel (mm) 1830/1830
Tyre 12.00R20 Wire Bead
Agitating volume (cubic meter) 12
Feed rate (cubic meter/minute) ≥2.7
Discharge rate (cubic meter/minute) ≥0.65
Discharging residual ratio (%) ≤0.5
Rotating speed of mixing drum (r/min) 0—14
